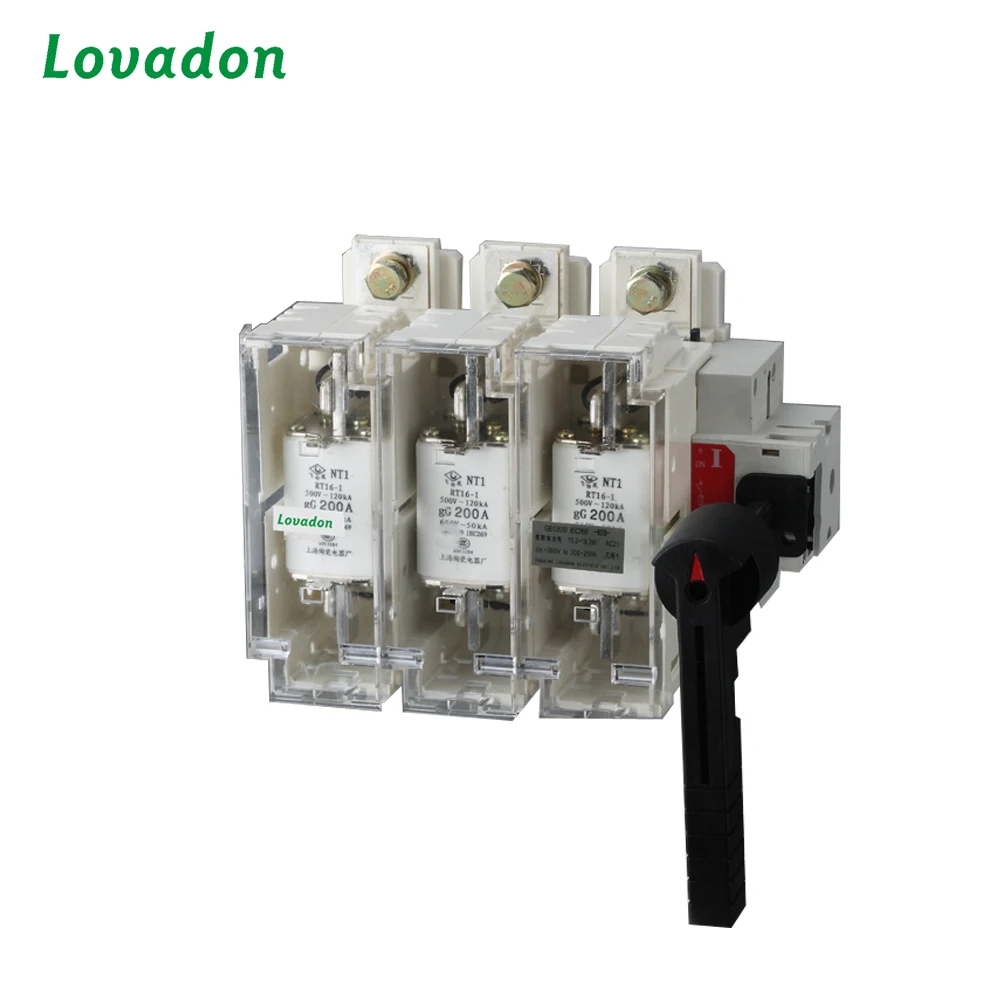

Hglr Series 160A 380V 4p Load Isolation Switch break Isolation switch

FOB Reference Price:Get Latest Price
$6.66 - $8.50 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LOVADON,OEM,other
Model Number:
HGLR160-4P
Max. Current:
1600A
Max. Voltage:
690V
Product name:
Insulating switch
Rated current:
160A
Structure:
Double-column Disconnector
Number of Poles:
3P 4 P
Rated frequency:
50/60 Hz
Mechanical Life:
6000 Times
Standard:
GB10963/IEC60898
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week Hglr Series 160A 380V
Packaging & Delivery
Packaging Details
Standard export packing or packing as your requirements
Port
Ningbo/shanghai/guangzhou/fuzhou

Hglr Series 160A 380V 4p Load Isolation Switch break Isolation switch

Banner



Product Description

NDGLR series isolating switch fuse set, suitable for AC 50HZ, rated current 630A in the public enterprise distribution network;Widely used in distribution circuits and motor circuits with high short-circuit current, used as manual infrequently connected and disconnected circuits or electrically isolated;It can be operated with load and used for short circuit protection.

The switch has beautiful appearance, novel and simple structure, simple structure and convenient operation. It conforms to IEC60947-3 and GB14048.3 standards and is the best choice for similar products.

1.Main Technical Parameters of Switches

Conventional thermal current Ith A

160A

250A

400A

630A

Rated insulation voltage Ui

690V

Rated operating voltage Ue

AC400,660V

Rated Frequency and Category of Use

50HZ,AC-238

Rated working current

400V/AC-23B

160A

250A

400A

630A

660V/AC-23B

100A

200A

315A

425A

Rated making capability (400V/AC-23) rms

1600A

2500A

4000A

6300A

Rated breaking capability (400V/AC-23) rms

1280A

3200A

3200A

5040A

Rated limited short circuit current(r.m.s)

50kA

50kA

50kA

50kA

Mechanical life

3000

3000

2000

1000

Electrical life

1000

1000

800

500

Operating torque(N-M)

10

15

20

30

Fuse loss power (P)

12W

24W

34W

48W

Weight(Three pole)kg

1.9

3.3

4.8

14.6

Main parameters of auxiliary switch

50Hz,AC-15,220V,2A

2.The Matching Relation between Switch and Fuse

Conventional thermal current Ith A

Fuse size matching

Fuse rated current (A)

160A

NT00

10.16.25.32.40.50.63.80.100.125.160

250A

NT1

80.100.125.160.200.225.250

400A

NT2

125.160.200.225.250.300.315.355.400

630A

NT3

315.355.400.425.500.630
