Electric Power Meter Single Phase Digital Power Meter

FOB Reference Price:Get Latest Price
US $14-15.5 / Pieces | 1 Piece/Pieces single phase digital power meter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Lovadon
Model Number:
LST96H-P
Display Type:
Digital Only
Phase:
Single Phase, 3
Measuring Energy Range:
0-99999
Accuracy Class:
0.5
Output Voltage:
AC110V/220V/380V
Operating Temperature:
-10 ℃~+55 ℃
Dimensions:
96*96mm
Product name:
Digital Combined Meter
Power Consumption:
<0.1VA/Phase
display:
LCD
Color:
White and Black
Rated frequency:
45~65 Hz
Mechanical Life:
10000 Times
Trademark:
OEM
Standard:
CE, IEC, ISO
Contact material:
ABS engineering plastics
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day digital power meter
Packaging & Delivery
Packaging Details
Standard export packing or packing as your requirements
Port
Ningbo
Banner


Product Description


Performance Characteristics

*High precision measurement of single/three phase active power,reactive power,apparent power

*Provide the digital tube display,local data query

*Programmable PT/CT ratio

*Support for RS-485 communication,modbus-RTU protocol

*Support for swith inout,output,analog transmitting output

*Auxiliary power supply:AC/DC 80-270V, AC 220V, AC 380V, AC 100V, DC 48V, DC 24V

*A variety of dimensions to meet the different requirements of the electric distribution box.

Technical Index

 Accuracy of measurement

*Active power:level 0.5

*Reactive power:level 0.5

*Apparent power:level 0.5

Signal Input

*Connection Mode:signal phase two wires,three phase four wires,three phase three wires

*Rated Voltage:AC 57.7V,AC 100V,AC 220V,AC 380V

*Rated Current:AC 1A,AC 5A

*Overload

      Voltage:1.2 times(continued),2 times/1second(instantaneous)

      Current:1.2 times(continued),10 times/5second(instantaneous)

*Power Consumption

      Voltage:<1VA per phase

      Current:<0.4VA per phase

*Impedance

      Voltage:>300KΩ

      Current:<20mΩ

*Frequency:45~60Hz

Accessory Power Supply

*Working Range:AC/DC 80-270V, AC 220V, AC 380V, AC 100V, DC 48V, DC 24V

*Power Consumption:<4VA

Function Module

*Communication Interface:1 way RS-485 communication,modbus-RTU protocol

*Baud Rate:2400~9600bps,the default is 9600bps

*Switch Input:4 ways

*Switch Onput:3 ways(capacity:AC 250V/1A,DC 30V/5A)

*Transmission Onput:3 ways(analog Onput:0/4~20mA or 0~5/10V)

Work environment

*Working Temperature:-10℃~+55

*Storage Temperature:-25~+70

*Relative Humidity:≤93,no corrosive gas

*Altitude:≤2500m

Safety

*Insulation Resistance:>100MΩ

*Ac Electric:AC 2KV

Emc Performance

*ESD Electrostatic Discharge:class 4

*Electrical Fast Transient Burst:class 4

*Surge(impact):class 4

Overall dimensions

*Frame Size(mm):120*120*,96*96,80*80,72*72

*Hole Size(mm):111*111,92*92,76*76,68*68

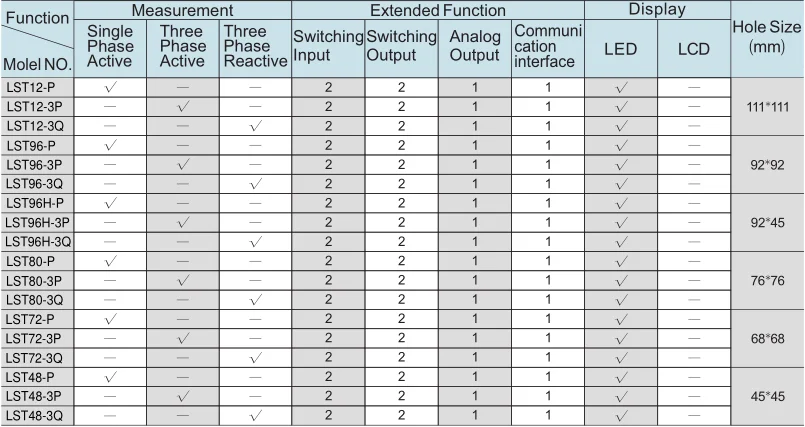

Specification selection

LST12-P .png

Pllease note that above is our normal function,please contact us for customizing special products.

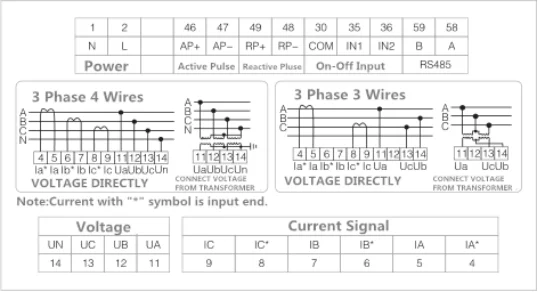

Terminal diagram

Note:If the wiring diagram on the instrument case is inconsistent, please use the instrument case



Order example

When ordering, you should specify the required product model, signal input,function modules and other related content

Example 1:

  Model:LST96H-3P-D

  Frame Size(mm):96*48

  Power supply:AC220V/50Hz

  Signal input:three phase three wires, AC 10kv/100v, AC 1000A/5A

  Transmission Onput:1 way 4~20mA

  Corresponding Relation:-866~0~+866;4ma~12mA~20Ma

  Other:Factory settings(Not specified in accordance with the default settings factory)
