1000 Piece/Pieces per Day digital multifunction meter
Packaging & Delivery
Standard export packing or packing as your requirements

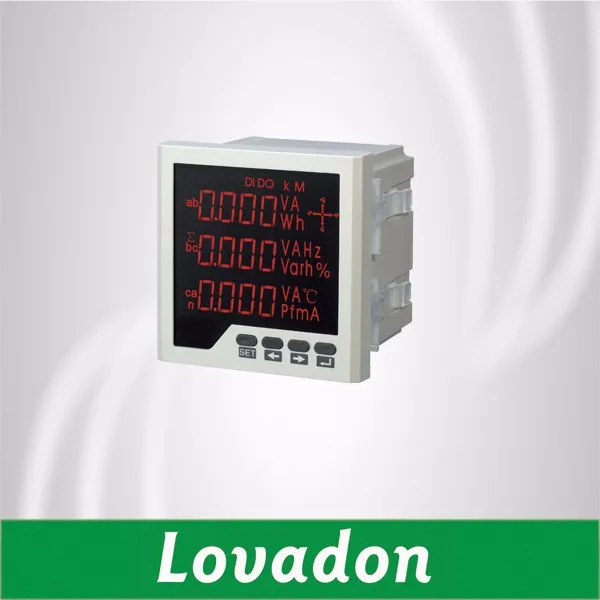

Asia Three Phase Digital Multifunction Electric Smart Meter
Performance Characteristics • High precision measurement of three phase voltage, three phase current, active power, reactive power, apparent power, power factor, frequency of electric parameters • Forward and reverse active or reactive energy measurement • Division of electric energy metering, time-sharing power • Measurement of three-phase voltage, three-phase current total harmonic distortion (THD), 2-31 odd harmonic component • Provide the digital tube display, local data query • Menu button intuitive, simple operation • Programmable CT/PT ratio • Provide multiple circuit leakage current monitoring Performance Characteristics • Provide multiple loop control nodes, can be used for the alarm, trip control • Support for fire control, remote cut off the fault circuit • Convenient installation, wiring is simple • To be completed by SCADA, PLC in a variety of communications software networking Technical Index Accuracy of measurement • Voltage: level 0.5 • Current: level 0.5 • Active Power: level 0.5 • Reactive Power: level 0.5 • Power Factor: level 0.5 • Frequency: ±0.02Hz • Active Electric Energy: class 0.5s or class 0.2s • Reactive Energy: Class 1 or Class 2 Signal Input • Connection Mode: Single phase two wires • Rated Voltage: AC 0-600V • Rated Current: AC1 A.AC5A • Overload Voltage: 1.2 times ( Continued ), • 2 times I second (instantaneous ) • Power Consumption: • voltage: <1VA/ phase; current:<0.4VA/phase Impedance: >300KΩ, current: <20mΩ The Frequency: 45~65Hz Auxiliary Power Supply • Working range AC 220V • Power Consumption: <4VA Function module • Communication Interface: 1 way RS-485 communication, Modbus-RTU protocol • Baud Rate: 1200~9600bps,the default is 2400bps • Switch Input: 4 ways • Switch Output: 4 ways( capacity: AC 250V/5A, DC 30V/5A) • Transmission Output: 3 ways(analog output: 0/4-20mA or 0-5/10V) • Electric Energy Pulse Output:: 2 ways • Constant:: 8000imp/KWh (KvaLH)
Packaging & Shipping
Q1:If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q2:Can I get a sample before the order because I really don't how is your product quality?
A:Of course! We also think sample order is the best way to build the trust.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!
Q3:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q4:I need your price list of all your products, do you have a price list?
A:We do not have a price list of all of our products. Because we have so many items, and it is impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
