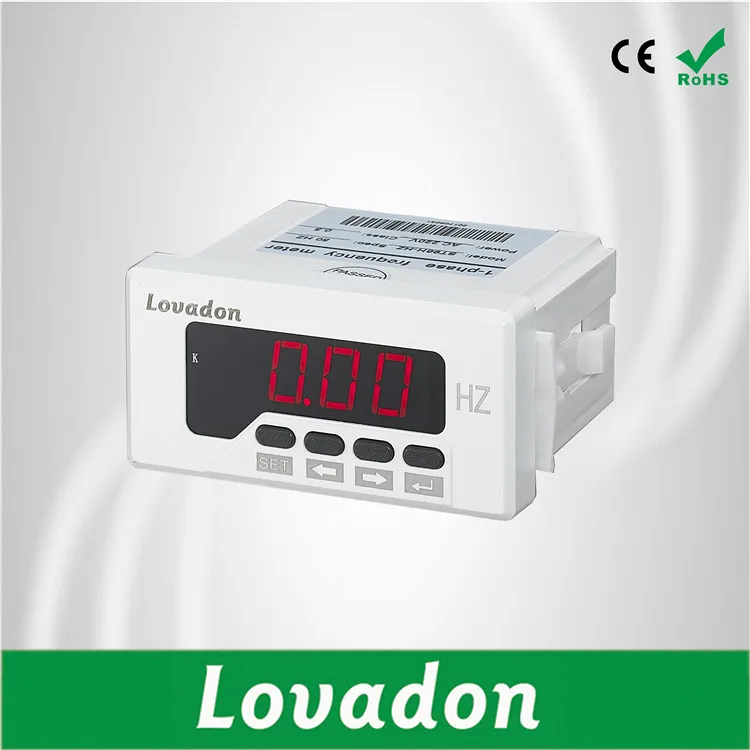

LST96H-HZ Frequency Energy Meter Single Phase Led Display Digital Frequency Meter

FOB Reference Price:Get Latest Price
US $7.5-8.2 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Lovadon
Model Number:
LST96H-HZ
Display Type:
Digital Only
Phase:
Three Phase, 1
Measuring Energy Range:
0-99999
Accuracy Class:
0.5
Output Voltage:
AC110V/220V/380V
Operating Temperature:
-10℃~+55℃
Dimensions:
96*48mm
Product name:
Digital Frequency Meter
Measurement Rate:
500mS/times
display:
LED
Color:
White
Rated frequency:
45~60 Hz
Mechanical Life:
10000 Times
Trademark:
OEM
Standard:
CE, IEC, ISO
Contact material:
ABS engineering plastics
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day digital frequency meter
Packaging & Delivery
Packaging Details
Standard export packing or packing as your requirements
Port
Ningbo

LST96H-HZ Frequency Energy Meter Single Phase Led Display Digital Frequency Meter

Banner



Product Description

Performance Characteristics

*High precision measurement of single phase AC frequency.

*Provide the digital tube display,local data query

*Programmable PT/CT ratio

*Support for RS-485 communication,modbus-RTU protocol

*Support for swith inout,output,analog transmitting output

*Auxiliary power supply:AC/DC 80-270V, AC 220V, AC 380V, AC 100V, DC 48V, DC 24V

*A variety of dimensions to meet the different requirements of the electric distribution box.

Technical Index

 Accuracy of measurement

*Frequency:±0.02Hz

Signal Input

*Connection Mode:signal phase two wires

*Rated Voltage:AC 57.7V,AC 100V,AC 220V,AC 380V

*Rated Current:AC 1A,AC 5A

*Overload:1.2 times(continued),2 times/1second(instantaneous)

*Power Consumption:<1VA per phase

*Impedance:>300KΩ

*Frequency:45~60Hz

Accessory Power Supply

*Working Range:AC/DC 80-270V, AC 220V, AC 380V, AC 100V, DC 48V, DC 24V

*Power Consumption:<4VA

Specification selection

  Function

Molel NO.
MeasurementExtended FunctionDisplayHole Size
(mm)
FrequencySwitching InputSwitching OutputAnalog OutputCommunication interfaceLEDLCD
LST12-F2211111*111
LST96-F221192*92
LST96H-F221192*45
LST80-F221176*76
LST72-F221168*68
LST48-F221145*45

Pllease note that above is our normal function,please contact us for customizing special products.

Terminal diagram

Note:If the wiring diagram on the instrument case is inconsistent, please use the instrument case

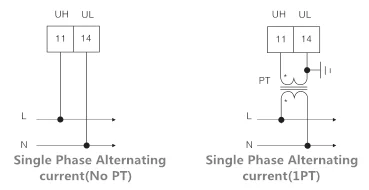

typical signal wiring diagram

Order example

When ordering, you should specify the required product model, signal input,function modules and other related content

Example 1:

  Model:LST96H-F-2I2OTD

  Frame Size(mm):96*48

  Power supply:AC220V/50Hz

  Switch Input:2 way

  Switch output:2 way

  Communication interface:RS485

  Signal input:AC 450V

  Transmission Onput:1 way 4~20mA

  Corresponding Relation:45~55Hz

  Other:Factory settings(Not specified in accordance with the default settings factory)

Example 2:

  Model:LST96-F-IOTD

  Frame Size(mm):96*96

  Power supply:AC220V/50Hz

  Switch Input:1 way

  Switch output:1 way

  Communication interface:RS485

  Signal input:AC 450V

  Transmission Onput:1 way 4~20mA

  Corresponding Relation:55~65Hz

  Other:Factory settings(Not specified in accordance with the default settings factory)
