Wenzhou Gold Supplier Electric Current Ampere Meters Single Phase LCD LED Digital Display Panel digital energy Meter

FOB Reference Price:Get Latest Price
US $5.3-6.4 / Pieces | 1 Piece/Pieces Current Meter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Lovadon,OEM
Model Number:
LST96-A
Display Type:
Digital Only
Phase:
Single Phase, 1
Measuring Energy Range:
0-99999
Accuracy Class:
0.5
Output Voltage:
AC110V/220V/380V
Operating Temperature:
-10℃~+55℃
Dimensions:
92*92mm
Product name:
Digital Current Meter
Measurement Rate:
500mS/times
display:
LED
Color:
White and Black
Rated frequency:
45~60 Hz
Mechanical Life:
10000 Times
Trademark:
OEM
Standard:
CE, IEC, ISO
Contact material:
ABS engineering plastics
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day Current Meter
Packaging & Delivery
Packaging Details
Standard export packing or packing as your requirements
Port
Ningbo
Lead Time :
7 days

Wenzhou Gold Supplier Electric Current Ampere Meters Single Phase LCD LED Digital Display Panel Energy Smart Power Amp Meter

Banner


Product Description


Performance Characteristics

*High precision measurement of single phase AC/DC current

*Provide the digital tube display,local data query

*Programmable CT ratio

*Support for RS-485 communication,modbus-RTU protocol

*Support for swith inout,output,analog transmitting output

*Auxiliary power supply:AC/DC 80-270V,AC 220V,AC 380V,AC 100V

*A variety of dimensions to meet the different requirements of the electric distribution box.

Technical Index

 Accuracy of Measurement

*Current:level 0.5

Signal Input

*Connection Mode:signal phase two wires

*Rated Current:AC 1A, AC 5A, DC 20mA, DC 1A, DC 5A, DC 75mV

*Overload:1.2 times(continued),10 times/5second(instantaneous)

*Power Consumption:<0.4VA per phase

*Impedance:<20mΩ

*Frequency:45~60Hz

Accessory Power Supply

*Working Range:AC/DC 80-270V,AC 220V,AC 380V,AC 100V

*Power Consumption:<4VA

Function Module

*Communication Interface:1 way RS-485 communication,modbus-RTU protocol

*Baud Rate:2400~9600bps,the default is 9600bps

*Switch Input:4 ways

*Switch Onput:3 ways(capacity:AC 250V/1A,DC 30V/5A)

*Transmission Onput:3 ways(analog Onput:0/4~20mA or 0~5/10V)

Work environment

*Working Temperature:-10℃~+55

*Storage Temperature:-25~+70

*Relative Humidity:≤93,no corrosive gas

*Altitude:≤2500m

Safety

*Insulation Resistance:>100MΩ

*Ac Electric:AC 2KV

Emc Performance

*ESD Electrostatic Discharge:class 4

*Electrical Fast Transient Burst:class 4

*Surge(impact):class 4

Overall dimensions

*Frame Size(mm):120*120*,96*96,80*80,72*72

*Hole Size(mm):111*111,92*92,76*76,68*68

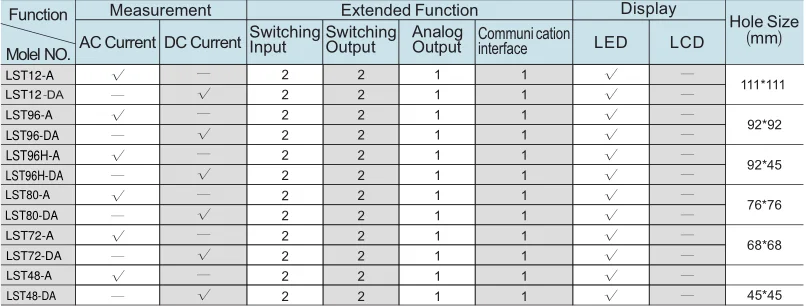

Specification selection

LST12-A .png

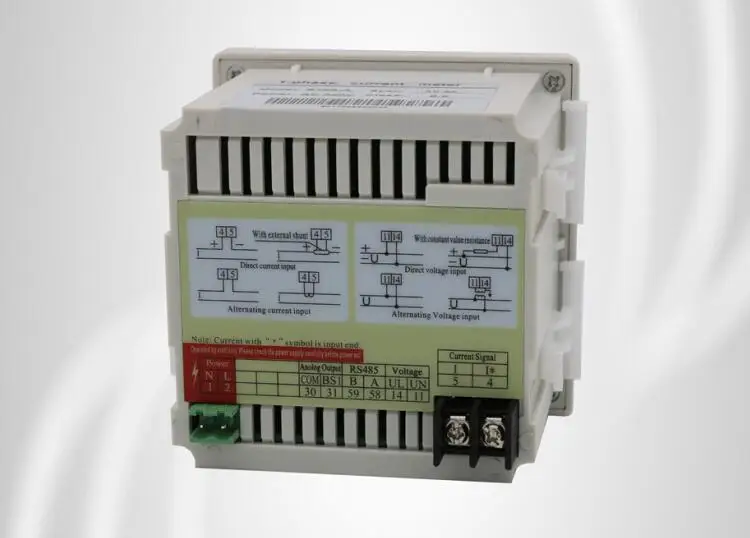

Terminal diagram

Note:If the wiring diagram on the instrument case is inconsistent, please use the instrument case

typical signal wiring diagram
