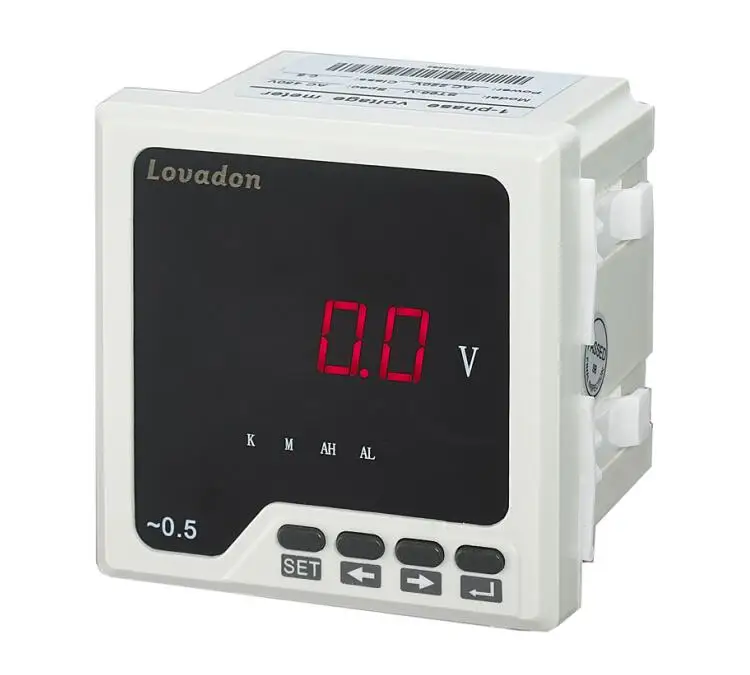

96*96mm LST96-V Single Phase LCD Voltmeter Digital Voltage Meter/ Volt meter

Performance Characteristics

*High precision measurement of single phase AC/DC voltage

*Provide the digital tube display,local data query

*Programmable PT ratio

*Support for RS-485 communication,modbus-RTU protocol

*Support for swith inout,output,analog transmitting output

*Auxiliary power supply:AC/DC 80-270V,AC 220V,AC 380V,AC 100V

*A variety of dimensions to meet the different requirements of the electric distribution box.

Technical Index

 Accuracy of measurement

*Voltage:level 0.5

Signal Input

*Connection Mode:signal phase two wires

*Rated Voltage:AC 57.7V, AC 100V, AC 220V, AC 380V, DC 2V, DC 20V, DC 200V, DC 600V

*Overload Voltage:1.2 times(continued),2 times/1second(instantaneous)

*Power Consumption:<1VA per phase

*Impedance:>300KΩ

*Frequency:45~60Hz

Accessory Power Supply

*Working Range:AC/DC 80-270V,AC 220V,AC 380V,AC 100V

*Power Consumption:<4VA

Specification selection

Pllease note that above is our normal function,please contact us for customizing special products.

Terminal diagram

Note:If the wiring diagram on the instrument case is inconsistent, please use the instrument case

typical signal wiring diagram

Order example

When ordering, you should specify the required product model, signal input,function modules and other related content

Example 1:

  Model:LST96H-V-2I2OTD

  Frame Size(mm):96*48

  Power supply:AC220V/50Hz

  Switch Input:2 way

  Switch output:2 way

  Communication interface:RS485

  Signal input:AC 450V

  Transmission Onput:1 way 4~20mA

  Other:Factory settings(Not specified in accordance with the default settings factory)

Example 2:

  Model:LST96-V-IOTD

  Frame Size(mm):96*96

  Power supply:AC220V/50Hz

  Switch Input:1 way

  Switch output:1 way

  Communication interface:RS485

  Signal input:AC 450V

  Transmission Onput:1 way 4~20mA

  Other:Factory settings(Not specified in accordance with the default settings factory)
