Dual Power NDSA Automatic Transfer Switch with 3p or 4p from 20A to 1600A

FOB Reference Price:Get Latest Price
US $11-12 / Pieces | 1 Piece/Pieces Automatic Transfer Switch (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LOVADON,OEM
Model Number:
NDSA
Max. Current:
1600A
Max. Voltage:
440V
Rated current:
160-1600A
Product name:
Automatic Transfer Switch
Certificate:
ISO9001
Number of Poles:
Three Pole
Rated frequency:
50/60 Hz
Mechanical Life:
10000 Times
Material:
Plastic
Standard:
GB10963/IEC60898
Type:
Low-voltage
Movement Mode:
Horizontal Rotary Type
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day Automatic Transfer Switch
Packaging & Delivery
Packaging Details
Standard export packing or packing as your requirements
Port
Ningbo

Dual Power NDSA Automatic Transfer Switch with 3p or 4p from 20A to 1600A

Banner


Product Description

 1.Application
The intelligent dual power auto transfer switch (brief as NDSA) suitable for emergency power supply system with rated AC voltage 400V, 50/60Hz. When one power source fault, can auto interchange from main power to backup power, no need manual operation, to protect the power supply stability. Mainly apply to the important place which not allow power cutoff such as Hospital, shopping mall, bank, chemical industry, metallurgy, high building, military facilities and fire-fighting etc.
2.Construction Features

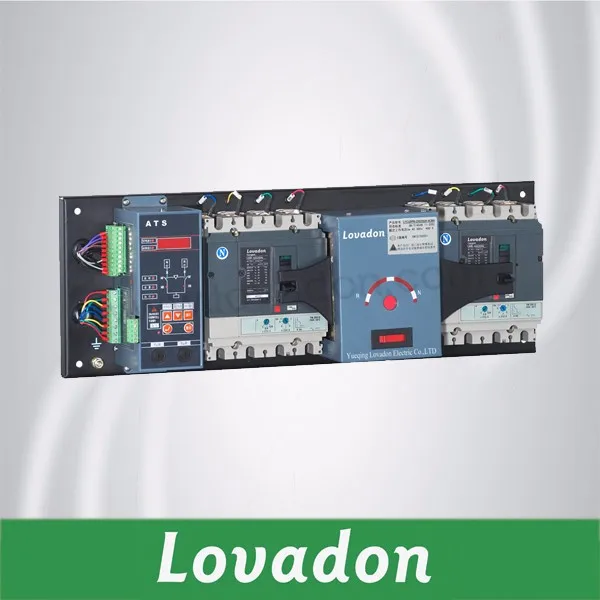

The intelligent NDSA comprised with two 3P or 4P MCCB and its accessories (Aux. contact,Alarm contact), Mechanical interlocking transmission mechanism, intelligent controller etc. Have two constructions of integral and split type. Integral type is controller and executive unit installed at a same base; Split type is controller installed on the panel and the executive unit installed on the base inside the panel box, a 2m length signal cable connecting the controller with the executive unit.
The features:
1. There is a reliable mechanical interlock device and electric interlock protection between two MCCB, completely avoid the possibility of two MCCB closed at same time;
2. Intelligentized controller adopt the single chip microcomputer (SCM) as the control core, simple hardware, strong functions, easy extension, high reliability;
3. Intelligent controller circuit layout design adopt power sampling separate with SCM control, from the hardware to overcome the electromagnetic interference;
4. With short circuit, over load protection functions, over-volt & under-volt,phase missing auto transfer function and intelligent alarm function;
5. Auto transfer data by external setting freely, with operation motor protect function;
6. Signal connecting cable have passed FLUKE instrument channel test, anti near crosstalk,attenuation crosstalk and back wave loss, can meet the test criteria for permanent link;
7. The ATS controller installation method provide customer with highly autonomy, ( split installation only need simply connect the attached RJ45 signal cable to the corresponding terminal port);
8. Customer can according to the operating requirements to select correct controller: A: Basic type, B: Intelligent digital display type
3.Working Mode
The intelligent dual power NDSA have two working mode: Auto mode and Manual mode
l Auto Mode: RDQ3CM series ATS according to the controller functions have three modes: Auto change Auto recovery (R), Auto change no recovery (S) and Power Grid-Generator (F), the first two mode used in power grid-power grid system, the latter mode is used in power grid-generator system.
l Manual mode: manual mode has three working mode, main power, backup power and breaker trip modes. Under manual working mode, there will be no auto transfer function.
1). Main power mode: Forced disconnecting backup power, and turn ON the main power
2). Backup power mode: Forced disconnecting the main power and turn ON the backup power
3). Breaker trip mode: To disconnecting two power source, also can switch on the fault tripped circuit breaker.Hgl Seriesats-ea
