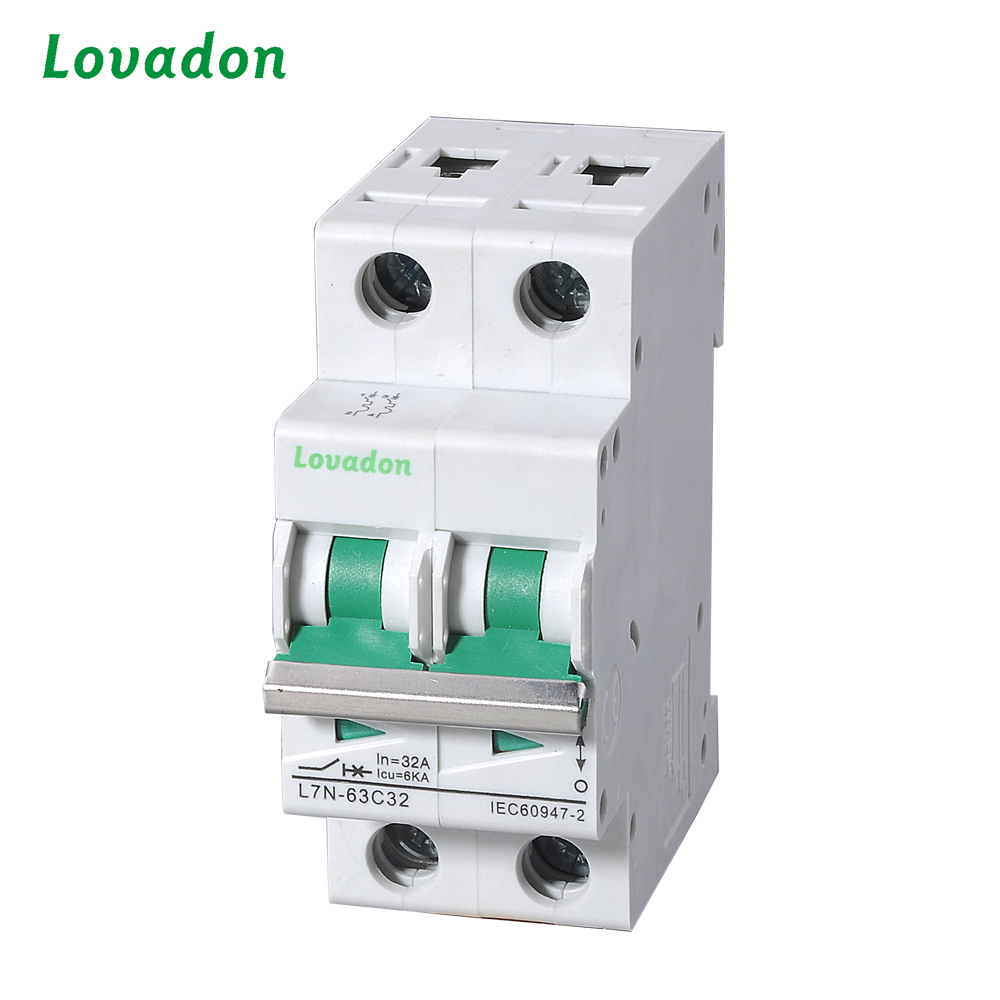

C32 L7N Series 2P MCB Low Voltage The DC Miniature Circuit Breaker

FOB Reference Price:Get Latest Price
US $0.65-0.82 / Poles | 1 Pole/Poles circuit breaker low voltage (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LOVADON
Model Number:
L7N
Type:
Mini
Poles Number:
2
Rated current:
6A-63A
Product name:
Miniature circuit-breaker
Rated voltage:
230/400
Certificate:
ISO9001
Breaking capacity:
4.5KA/6KA/10KA
Pollution degree:
2
Rated frequency:
50/60 Hz
Mechanical Life:
20000 Times
Storage temperature:
-25~+70
Standard:
IEC/EN 60898-1
Supply Ability
Supply Ability:
25000 Piece/Pieces per Day the circuit breaker
Packaging & Delivery
Packaging Details
120 pieces of one carton.Weight:25kG. The carton size:42*24*36(cm).Standard export packing or packing as your requirements
Port
Ningbo

C32 L7N Series 2P MCB Miniature Circuit Breaker

Banner


Product Description



APPLICATIONS

The products of L7N belong to the advanced level of the nineties in the world instead of the older generation of L7N. They have protective function as shortage as overload, and are used in lighting distribution system in industry, commerce and dwelling, and protect fractional electric motors. And they also have many merits of high protective grade(up to IP20), high break capacity, reliable sensitive action,convenient, multiple assembling, long life etc. They are mainly adapted to the circuit of AC 50HZ, 230V in single pole, 400V in double, three, four poles for protecting overload and short circuit. Meanwhite, they are also used in turning on or off electric apparatus and light circuit under the normal condition.



 Standard IEC/EN  60898-1
Electrical
features
Rated current InA1,2,4,6,10,16,20,25,32,40,50,63
PolesP1,2,3,4
Rated voltage UeV220/380    230/400    240/415
Insulation voltage UiV500
Rated frequencyHz50/60
Rated breaking capacityA4500/6000/10000
Rated impulse withstand voltage(1.2/50) UimpV6000
Dielectric test voltage at ind. Freq. for 1minkV2
Pollution degree 2
Thermo-magnetic release characteristic B,C,D
Mechanical
features
Electrical lifet8000
Mechanical lifet20000
Contact position indicator Yes
Protection degree lP20
Reference temperature for setting
of thermal element C30
Ambient temperature CFrom -5~+40
(with daily average < 35  )
Storage temperatureC-25~+70
InstallationTerminal connection type Cable /Pin-type busbar
Terminal size top /bottom for cablemm225
 AWG18~3
Terminal size top/bottom for busbarmm225
 AWG18~3
Tightening torqueN*m2
 ln-Ibs18

Mounting On DIN rail EN 60715(35mm)by means fast clip device
Connection From top and bottom
