Class B Power Surge Protector NDU1-80 4P Lightning Arrester Solar Surge Protective Device

FOB Reference Price:Get Latest Price
US $16-16.5 / Pieces | 1 Piece/Pieces Surge Protector Device (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LOVADON,OEM
Model Number:
NDU1-80
Product name:
Surge Protective Device
Color:
White/Red
Installation:
Standard Rail 144mm
Relative humidity(25℃):
≤95%
Certificate:
CE/ISO9001
Material:
PPT
Service:
OEM OED
Poles:
4P
Rated current:
80KA
Standard:
GB18802,IEC61643-1
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day power surge protector
Packaging & Delivery
Packaging Details
Standard export packing or packing as your requirements
Port
NINGBO

Class B Power Surge Protector NDU1-80 4P Lightning Arrester Solar Surge Protective Device

Banner


Product Description

 Product Description

This series of products is suitable for AC 50/6042, 380 and below the TN-S, TN-CS, TT, IT and other power supply system is based on IEC standard design standard 35MM rail installation, the product temperature control circuit technology, built-in (F) This series of products are suitable for low-voltage BCD lightning protection of buildings, usually installed in the low-voltage lightning protection devices, Floor distribution box, counter center, telecommunication room, elevator control room, variable control room and distribution box with electronic medical equipment.

Technical Parameters
                        Model
Technical Parameters
NDU1-10NDU1-20NDU1-30NDU1-40NDU1-60NDU1-80NDU1-100
Rated Operating Voltage Uc(V~)220V/380V
Maximum Continuous Operating Voltage Uc( V~) 275V 320V 385V/420V 420V
Protection Level Up(V-)kV≤1.1≤1.5≤1.6≤1.8≤2.0≤2.2≤2.5
Nominal Discharge Curreni lN( 8/20s)kA 5101520304060
Nominal Discharge Current lMAX(8/20 us)kA 102030406080100
Response Time ns<25
Tesl StandardGB18802,IEC61643-1
L/N(mm2)The Cross Section of L/N Line4488101010
PE(mm2) The Cross Section of PE Line661010101616
Fuse or Switch(A)10A,16A,25A25A,32A32A32A,63A63A63A,100A63A,100A
Operating Environment℃-40℃~+85℃
Relative Ilumidity (25℃)≤95%
Installation Standard Rail 35mm
Material of Outer CoveringFiber glass reinforced plastic

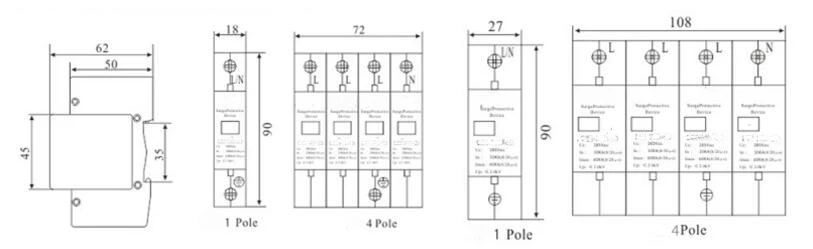

Outlooking Dimension

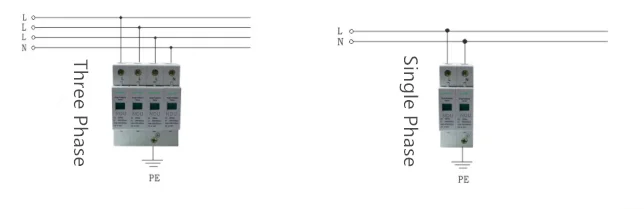

Installation Dimension



4_
