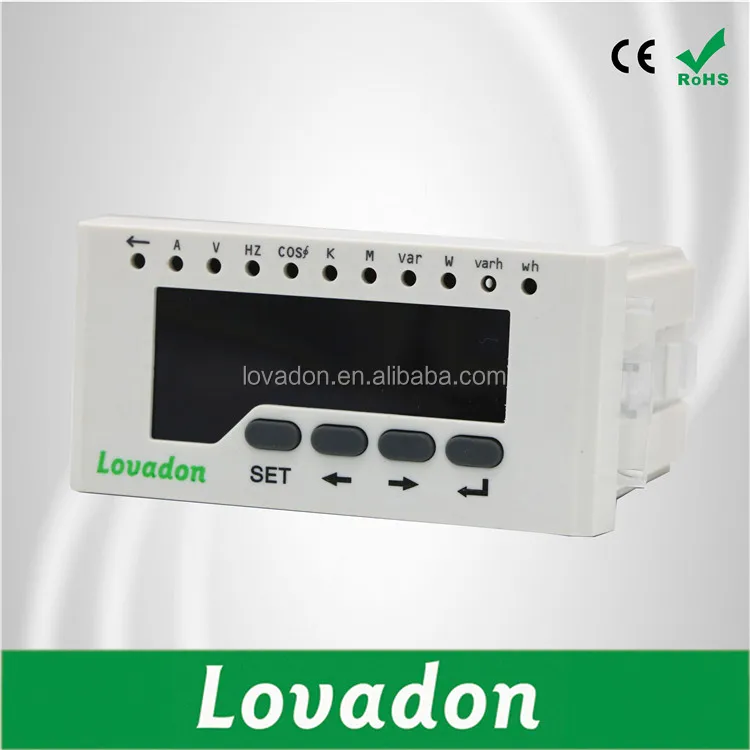

Trade Assurance Electric Single Phase LCD Display Digital Smart Power Meter

FOB Reference Price:Get Latest Price
US $12-13 / Pieces | 1 Piece/Pieces single phase electric meter price (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Lovadon,OEM
Model Number:
LST192-D51
Measuring Current Range:
AC 1A,AC 5A
Measuring Voltage Range:
AC57.7V,100V,220V,380V
Accuracy Class:
0.5
Operating Temperature:
10℃~+55℃
Dimensions:
96X48mm
Product name:
Power meter
Measurement Rate:
500mS/times
display:
LCD LED
Color:
White and Black
Phase:
1
Rated frequency:
45~60 Hz
Mechanical Life:
10000 Times
Trademark:
OEM,ODM
Standard:
CE, IEC, ISO
Contact material:
ABS engineering plastics
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day single phase electric meter price
Packaging & Delivery
Packaging Details
Standard export packing or packing as your requirements
Port
Ningbo

Trade Assurance Electric Single Phase LCD Display Digital Smart Power Meter

Banner


Product Description



Performance Characteristics

*High precision measurement of single phase voltage,current,active power,reactive power,apparent power,power factor,frequency of electric parameters

*Forward and reverse active or reactive energy measurement

*Division of electric energy metering,time-sharing power,timing meter reading

*Measurement of single phase voltage,single phase current total harmonic distortion(THD),2-31 odd harmonic component

*Provide the digital tube display,local data query

*Menu button intuitive,simple operation

*Programmable PT/CT ratio

*Provide multiple circuit leakage current monitoring

*Provide multiple loop control nodes,can be used for alarm, trip and other control

*Support for fire control,remote cut off the fault circuit

*Support for RS-485 communication,modbus-RTU protocol

*Support for swith input,output,analog transmitting output,electric energy impluse output

*Convenient installation, simple wiring, small workload

*Wide range AC/DC universal power supplies:AC/DC 80-270V

*To be completed by SCADA,PLC in a variety of communication software networking

Technical Index

Accuracy of measurement

*Voltage:level 0.5

*Current:level 0.5

*Active power:level 0.5

*Reactive power:level 0.5

*Power factor:level 0.5

*Frequency:±0.02Hz

*Active electric energy:class 0.5s or class 0.2s

*Reactive electric energy:class 1 or class 2

Signal Input

*Connection Mode:signal phase two wires

*Rated Voltage:AC 57.7V,AC 100V,AC 220V,AC 380V

*Rated Current:AC 1A,AC 5A

*Overload:

      Voltage:1.2 times(continued),2 times/1second(instantaneous)

      Current:1.2 times(continued),10 times/5second(instantaneous)

*Power Consumption

      Voltage:<1VA per phase

      Current:<0.4VA per phase

*Impedance

      Voltage:>300KΩ

      Current:<20mΩ

*Frequency:45~60Hz

Accessory Power Supply

*Working Range:AC/DC 85-265V

*Power Consumption:<4VA

Function Module

*Communication Interface:1 way RS-485 communication,modbus-RTU protocol

*Baud Rate:2400~9600bps,the default is 9600bps

*Switch Input:4 ways

*Switch Onput:3 ways(capacity:AC 250V/5A,DC 30V/5A)

*Transmission Onput:3 ways(analog Onput:0/4~20mA or 0~5/10V)

*Electric energy pulse output:2 ways(constant:8000imp/kwh(kvarh))

Work environment

*Working Temperature:-10℃~+55

*Storage Temperature:-25~+70

*Relative Humidity:≤93,no corrosive gas

*Altitude:≤2500m

Safety

*Insulation Resistance:>100MΩ

*Ac Electric:AC 2KV

Emc Performance

*ESD Electrostatic Discharge:class 4

*Electrical Fast Transient Burst:class 4

*Surge(impact):class 4

Overall dimensions

*Frame Size(mm):120*120*,96*96,96*48,80*80,72*72,48*48,120*60,160*80

*Hole Size(mm):111*111,92*92,92*45,76*76,68*68,45*45,114*56,152*76

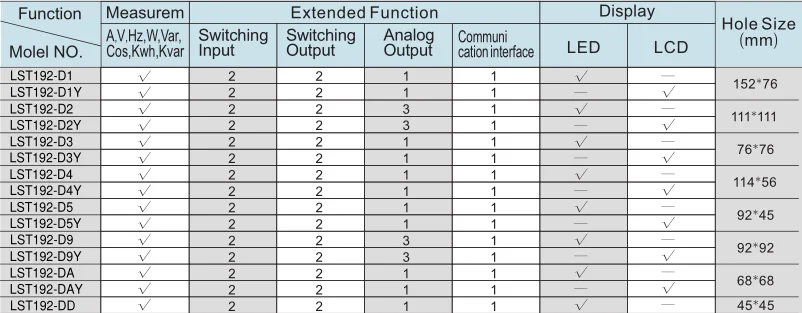

Specification selection

LST192-D1 .png
