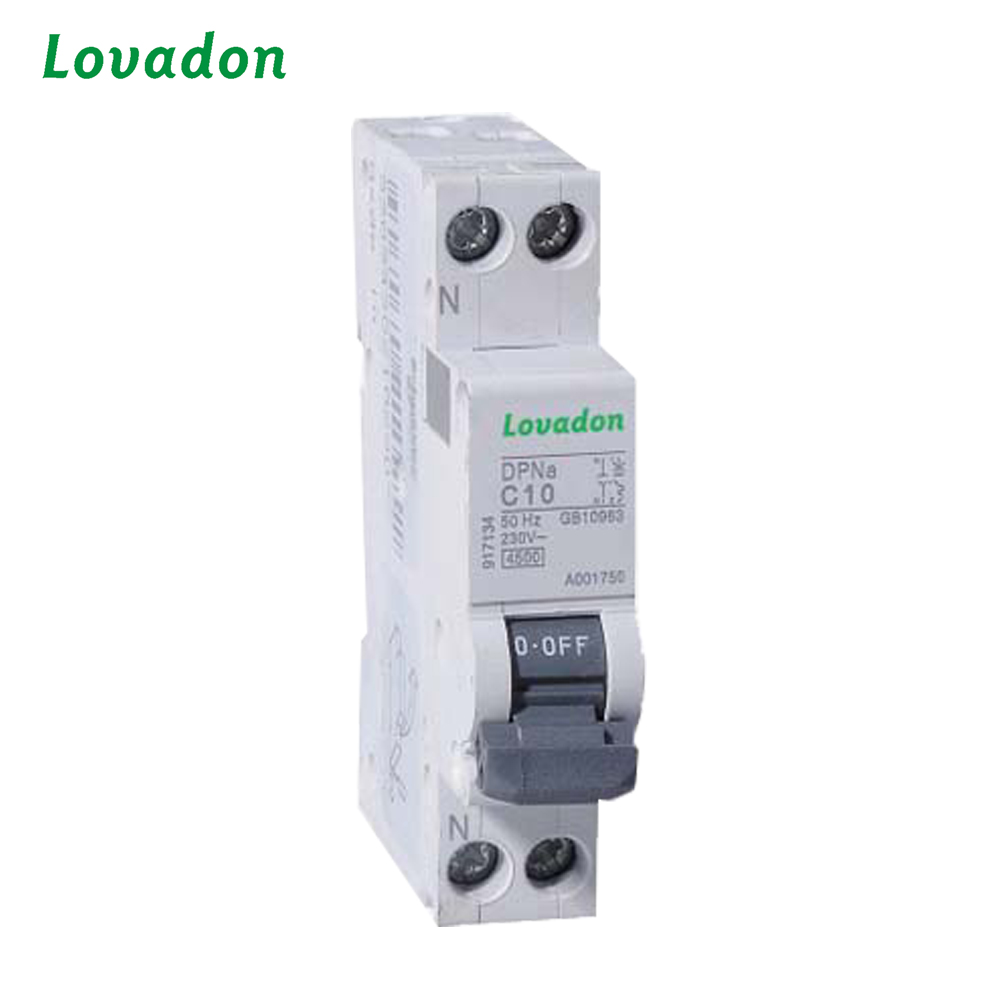

Indoor 6 Amp Dpna Series Miniature Circuit Breaker

FOB Reference Price:Get Latest Price
US $0.86-1 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LOVADON,OEM
Model Number:
Dpna
Type:
Mini
Poles Number:
1
Rated current:
6A-32A
Product name:
Miniature circuit-breaker
Rated voltage:
230V
Certificate:
ISO9001
Breaking capacity:
3kA
Color:
White
Rated frequency:
50/60 Hz
Mechanical Life:
10000 Times
Pole:
1
Standard:
IEC/EN 61009-1
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day indoor circuit breaker
Packaging & Delivery
Packaging Details
240 pieces of one carton.Weight:25kG. The carton size:42*24*36(cm).Standard export packing or packing as your requirements
Port
Ningbo

Indoor 6 Amp Dpna Series Miniature Circuit Breaker

Banner



Product Description



10 KA according  IEC 60947-2 and IEC 60947-4
Circuit Breaker
Model NO.: DPNa
Breaking Capacity: Low Voltage Circuit Breakers

1.Specifications
Electrical
feature
Standard IEC/EN 61009-1
Type(wave form of the earth leakage sensed) AC
Thermo-magnetic release characteristic C
Rated current lnA6,10,16,20,25,32
PolesP1P+N
Rated voltage UeV230
Rated sensitivity I nA0.03
Rated residual making and breaking capacity l mA500
Rated short-circuit capacity IcnA3000
Break time under I ns<0.1
Rated frequencyHz50/60
Rated impulsewithstand voltage(1.2/50)UimpV4000
Dielectric test voltage at ind.Freq for 1minkV2
Insulation voltage UiV250
Pollution degree 2
Mechanical
feature
Electrical life 4000
Mechanical life 10000
Fault current Indicator Yes
Protection degree IP20
Ambient temperature -5~+40(Special application please refer to
(with daily average 35 )Ctemperature compensation correction)
Storage temperatureC-25~+70
InstallationTerminal connection type Cable/Pin-type busbar
Terminal size top/bottom for cablemm216
AWG18--5
Terminal size top/bottom for busbarmm225
AWG18--3
Mounting On DIN rail EN 60715(35mm)by means of fast clip device
Connection C
