High Current Rating Up to 100A RCD Remote Control Auto Reset Circuit Breaker With RS485

FOB Reference Price:Get Latest Price
US $33-39 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LOVADON,OEM
Model Number:
LML50H-2P
Type:
Mini
Poles Number:
2
Mode:
electro-magnetic type
Residual current:
10, 16, 20, 25,32, 40,63A
Rated voltage:
230/400V AC
Breaking capacity:
10kA
Residual current characteristics:
AC, A
Rated frequency:
50/60 Hz
Pole No.:
2, 4
Material:
Plastic Copper
Standard:
IEC/EN 60898-1
Certificate:
ISO9001
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day residual current device
Packaging & Delivery
Port
Ningbo

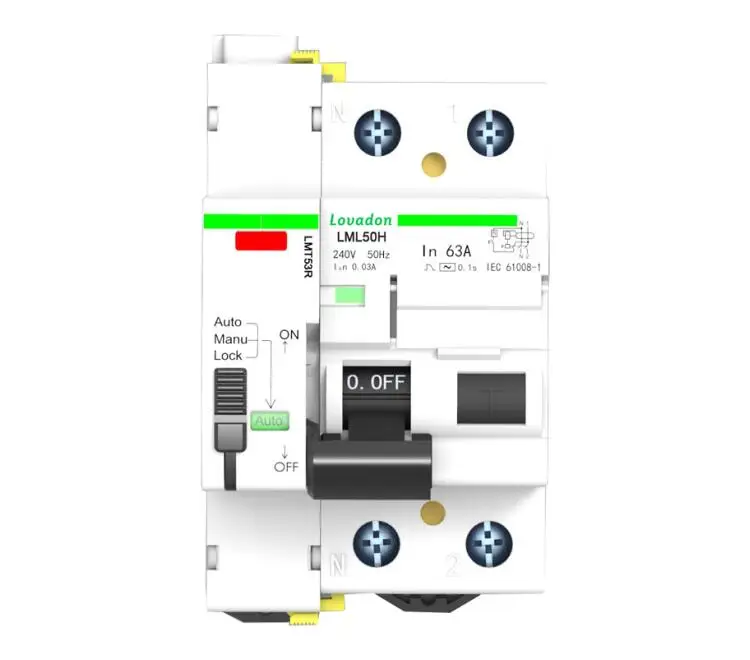

High Current Rating Up to 100A Remote Control Auto Reset Circuit Breaker With RS485

Banner



Product Description

Application:

Provides protection against earth fault/leakage current and function of isolation
High current rating up to 100A
Applicable to terminal and pin/fork type busbar connection
Contact position indication
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds
the rated sensitivity.
Independent of power supply and line voltage and free from external interference, voltage
fluctuation.



Technical Data

Mode: electro-magnetic type
Residual current characteristics: AC, A
Pole No.: 2, 4
Rated making and breaking capacity: 10000A
Rated voltage: 230/400V AC
Rated frequency: 50/60Hz
Rated Current: 25,40,63A
Rated residual operating current IΔn(mA): 10, 30, 100, 300, 500
Rated residual non operating current IΔno: 0.5IΔn
Rated conditional short-circuit current Inc: 3000A
Rated conditional residual short-circuit Current IΔc: 3000A
Tripping duration: instantaneous tripping≤0.1s
Residual tripping current range: 0.5IΔn~IΔn
Electro-mechanical endurance: 4000 cycles
Connection capacity: Rigid conductor 25mm


Connection terminal:
Pillar terminal with clamp
Fastening torque: 2.5Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
