LSB9L-125Z 4P series Smart intelligent leakage wifi circuit breaker

FOB Reference Price:Get Latest Price
$49.00 - $50.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
Poles Number:
Rated current:
16, 20, 25, 32, 40, 63, 80, 100A
Rated voltage:
Rated frequency:
50 Hz/60HZ
Mechanical life:
more than 10000 times
Electrical life:
more than 6000 times
earth leakage:
30ma 300ma
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day mini circuit breaker
Packaging & Delivery

10kA Electric 1A/3A/6A/10A/16A/20A/32A/40A/50A/63A Auto Miniature Circuit Breaker



Product Description


LSB9L-125Z Wifi series intelligent leakage circuit breaker(with metering function)embodies the latest design concept and manufacturing technology, with small compact, long life, modular, high resolution, intelligent remote control and so on
Applicable to AC 50HZ, rated voltage 220V/380V, rated current to100A line, for connecting, breaking, timing, delay and distribution of electrical energy and bearing the role of rated current,It can also be used to protect the line and electric equipment under the condition of overload and short circuit of the line and equipment, and also can be used as the motor's infrequent starting and the protection According to the function, this product can be divided into"with metering function"and "with leakage protection plus metering function.

Technical parameters

Compliance: EC 61009-1 GB 16917-1

Rated voltage: AC220V(1P,2P)/AC400V(3P,4P)

Rated frequency: 50HZ

Poles: 1P ( with metering function without leakage protection2P

2P(with metering and leakage protection function)

4P (no metering with leakage protection function)

Pollution level: level 2

Protection level: IP20

Type of installation:II, III

Specified service temperature-25℃-+65

Frame rating current: 100A

Rated current:16A,20A,25A,32A,40A,63A,80A,100A

instantaneous tripping form: C

Rated short circuit breaking capacity: 6KA

Rated impulse withstand voltage: 6kv

Mechanical life: more than 10000 times

Electrical life: more than 6000 times

Leakage current:In 30mA  In 100mA  In 300mA

Rated current, voltage, power, threshold adjustable

Level of measurement: level 1

Leakage action time: (fast type)t≤0.1s. (delay type)t≤0.2s

EMC performance :comply with GB/T 18449

Surge withstand: comply with GB/T 17626.5. voltage 4.0KV

Salt spray tolerance: comply with GB/T 2423.17 48h

Dust tolerance; comply with GB 4208 8h

Maximum wiring capacity: 50mm2

Tightening torque:4-5N/m

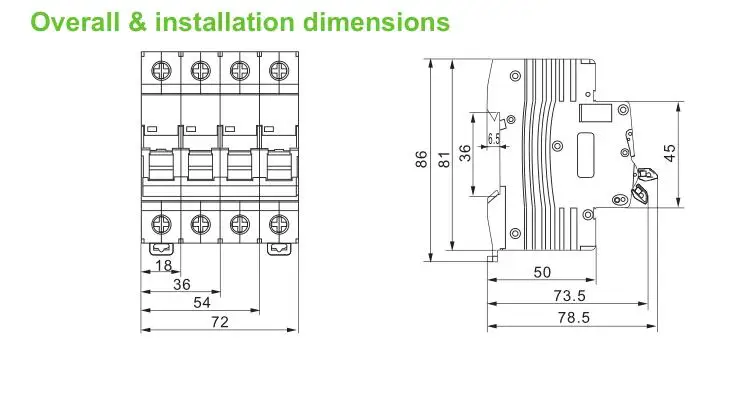

Installation Size
