Reliable Quality Single Phase Automatic Reset Circuit Breaker With Over Under Voltage Protection Recloser

FOB Reference Price:Get Latest Price
US $25-27 / Pieces | 1 Piece/Pieces automatic reset circuit breaker (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LOVADON,OEM
Model Number:
LMT53UV
Type:
Mini
Poles Number:
1
Module:
1P, 18mm
Rated current:
1-63A
Rated voltage:
230VAC/1P,2P; 400VAC/3P,4P
Under-voltage(V):
170±5V (Phase Voltage)
Under voltage(V) to Reclose:
190±5V (Phase Voltage)
Over-voltage(V):
270±5V (Phase Voltage)
Over voltage(V) to Reclose:
250±5V (Phase Voltage)
Material:
Plastic Copper
IP Grade:
IP20
Certificate:
ISO9001
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day automatic reset circuit breaker
Packaging & Delivery
Port
Ningbo

Reliable Quality Single Phase Automatic Reset Circuit Breaker  With Over Under Voltage Protection Recloser

Banner


Product Description


Application:

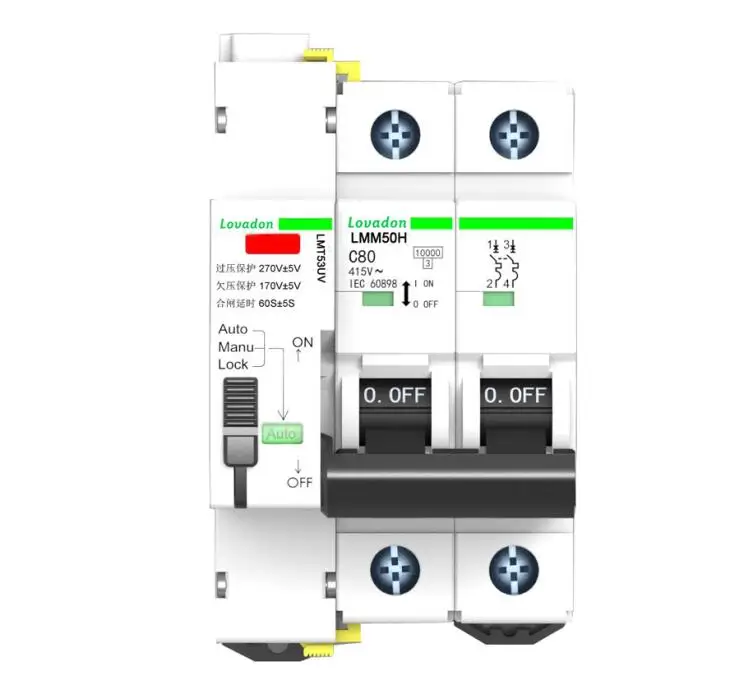

LMT53UV works together with LMM50H. It owns automatic voltage detector that will protect
circuit, either when it is over-voltage or under-voltage. It will reclose automatically as soon as
the circuit returns normal voltage. This is a very perfect solution to real circuit fluctuates, as it
is small size, and MCB is really reliable.
LMT53UV will only trip when voltage is abnormal, however, it won’t trip or reclose when
MCB tripped due to overload or short-circuit faulty.
LMT53UV may also work with all our LMX accessories, such as LMX50U, which is under-
voltage protection auxiliary. They can be applied together for PV system.



Technical Data

Module: 1P, 18mm
Rated Voltage: 230VAC/1P,2P; 400VAC/3P,4P
Under-voltage(V): 170±5V (Phase Voltage)
Under voltage(V) to Reclose: 190±5V (Phase Voltage)
Over-voltage(V): 270±5V (Phase Voltage)
Over voltage(V) to Reclose: 250±5V (Phase Voltage)
Time delay to reclose(S): 60±5S
Reclosi time(S): ≤0.5S
Electrical life : 10000
IP Grade Ip20 IP g :
Sea level(m): 2000 ≤
Temperature : - 25℃ ~ 60℃
Instruction on front panel
Auto : MT53UV will inspect the line voltage automatically, and will trip when the
voltage is either over or under normal rated voltage.
M a nu : MT53UV is set for manual mode, that is the device won't operate even
the voltage is abnormal;
 Indication lights
Constant green: normal operation, ON postion;
Constant red: under-voltage faulty
Red flash: over-voltage faulty
Green flash: time-delay reclosing
Constant orange: locked by faulty
light off: no power or “Manu” state;
