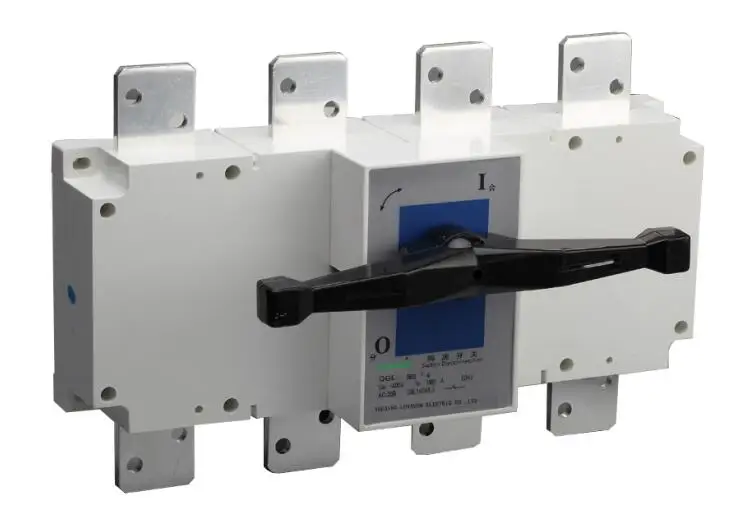

Electric Disconnect Switch 1600A Manual Power Transfer Switch Load Isolation Switches

FOB Reference Price:Get Latest Price
$161.22 - $300.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
Max. Current:
Max. Voltage:
Rated current:
Product name:
Load Insulating switch
Number of Poles:
Rated frequency:
50/60 Hz
Mechanical Life:
6000 Times
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week DC Load Isolating switch
Packaging & Delivery
Packaging Details
Standard export packing or packing as your requirements

Electric Disconnect Switch 1600A Manual Power Transfer Switch Load Isolation Switches



Product Description

NDGL series load isolation switch(hereinafter called switch for short) is manufactured by our company with the up-to-date technique imported from europe.
This product meets the international technial level in the late 1990S. Being the most ideal renewal of domestic congeneric products.
This kind of lode isolation switch is widely used in the distribution system and automatic system of architecture, electrical power, petrochemical, and other industries.
This kind of lode isolation switch possesses flexible structure of modularized design, possesses fiexible and versatile compositionality, it adopts the shell made by unsaturated polyester resin reinforced by glassfibre. It has very high dielectric performance. Protective capability, and reliable operation.
The operating mechanism is an elastic energy accumulation accelerating mechanism for instant release, which makes instant on and off of the double breakpoint contact, It has no relationship
With the speed of operating handle and increases greatly various electric properties.
Many forms of structres and operations in which the on and off state of contact is observed through windows. There are operations inside and outside the board. There are frontal and lateral operations. There are connections behind the board.
This kind of swich has a good-looking outline and various functions, being very novel, simple and small-dimensioned, and the best choice among the congeneric prouducts.
1The elastic-accumulating accelerating mechanism for instant realizes the rapid making and breaking (13.8m/s), having no relationship with the speed of the operating handle, and increasing greatly the capability of extinguishing electric arc.
2The shell made of unsaturated polyester resin reinforced by glass fiber possesses excellent performance of flame resistant, dielectric performance and safe operation, resist carbonic performance and resist impact performance.
3Parallel double gap contact possesses self-cleaning functions.
4All the contact materials are copper alloy plated with silver, with two separation contact surfaces.
5Large distance of insulation
6Be on "0" position, the switch handle can be locked with three locks at the same time and thus avoid error operation.
Product usage
NDGL series load isolation switch mainly suitable for AC 50HZ, rated voltage to 600V, DC rated voltage up to 440V, rated current up to 3150A, The switch is used in infrequent making and breaking circuit.
International Standard
1International standard IEC60947-1(1998) Low-voltage switchgear and control gear part one, general Rules
2IEC60947-3(1999)Low-voltage switchgear and control gear, switches disconnections, switch-disconneetors and fuse-combination units
3National standard:
4 GB/T 14084.1-2000 Low-Voltage switchgear and control gear, part one, general Rules
5 GB 14048.3 -2002 Low-voltage switchgear and control gear, switches, disconnections, switches-disconneetors and fuse combination units
NDGL Series load isolation switch can work reliably under the following condition
1Height about level does not exceed 2000m
2Ambient temperature is ntot higher than 40Cand not lower than -5C; Relative humidity is not larger than 95%
3No explosive dangerous medium environment;
4No rain and snow attack environment;
Note: If the load isolation switch is expected to be used in the condition that the ambient temperature is higher than +40C or is lower than -5C-45C, customers should inform to the manufactory.
