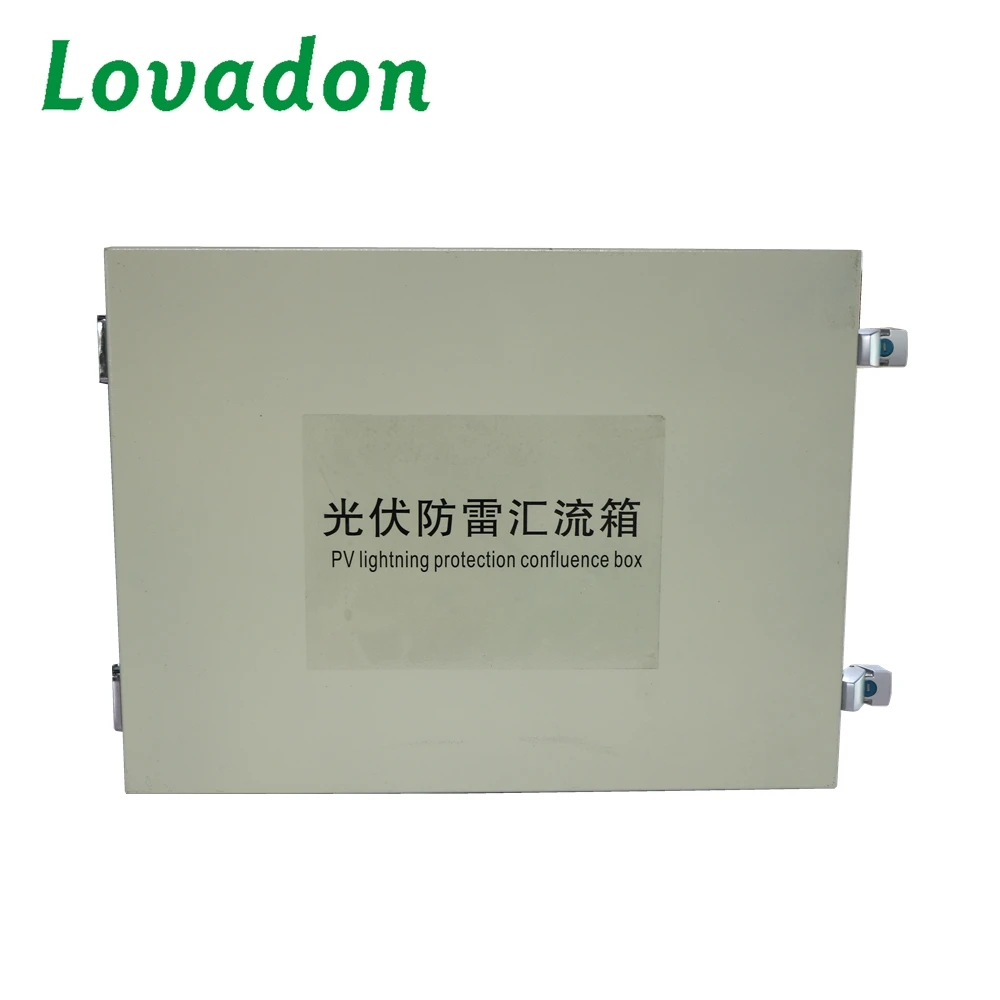

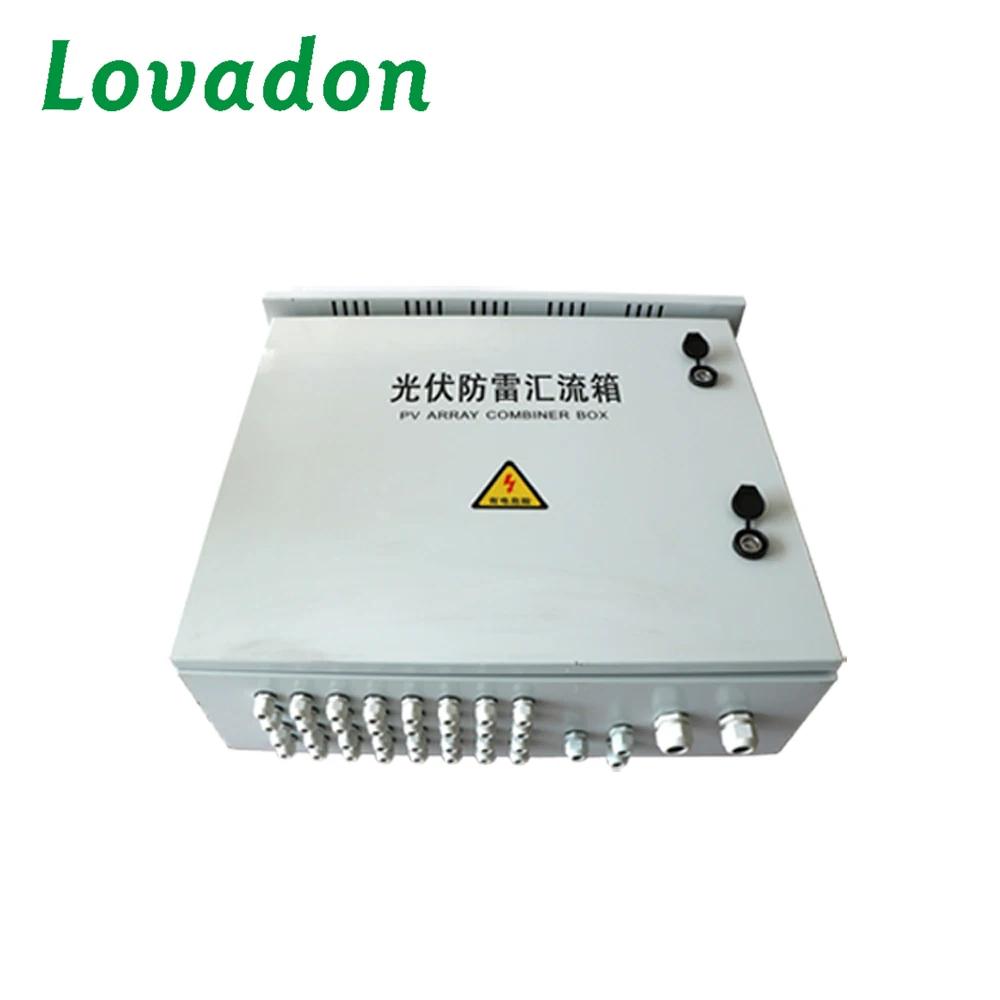

Hot sale intelligent pv street lighting pole fuse Junction box 12 Channel waterproof pv solar system DC combiner box

FOB Reference Price:Get Latest Price
US $311-420 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LOVADON
Model Number:
LYV-CD16
Type:
combiner box
Rated Input Voltage:
480V AC
Rated Insulation Voltage:
690V AC
Rated Frequency:
50 Hz
Busbar Rated Current:
400A (Horizontal Bus)
Power Frequency Withstand Voltage for 1:
2500 Va
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard export packing or packing as your requirements
Port
Ningbo

Hot sale intelligent pv street lighting pole fuse Junction box 12 Channel waterproof pv solar system DC combiner box

Banner



Product Description

For large-scale PV grid-connected power generation system, in order to reduce the connection between the PV module and the inverter, and to facilitate maintenance to improve reliability,it generally need to add DC busbar device between the PV module and the inverter. Our company's PV array lightning protection combiner box is designed to meet this requirement and can be designed to a complete PV power generation system solution with PV inverter products. Using PV combiner box, the user can put certain number of same specifications PV modules into series PV module according to input DC voltage range of the inverter, and then a number of series PV modules access to the PV array lightning protection box.It's convenient to facilitate the post-inverter through the output for lightning protection device and circuit breaker.

 The PV array lightning protection box has the following characteristics:

(1) meet the requirements of outdoor installation, protection class IP65, with anti-UV, anti-acid, anti-alkali, moisture, mildew, rodent control and other functions;

(2) access 16-way PV array, each with 15A, 1000Vdc fuse (replaceable other grades);

(3) Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode ;

(4) Positive, negative string into the fuse;

(5) Use quadruple PV dedicated circuit breaker with positive and negative in series;



NumberParameter nameValue
 1Size(mm)630*590*200(W*H*D)
 2Rated input voltage480V AC
 3Rated insulation voltage690V AC
 4Rated frequency50 Hz
 5Busbar rated current400A (Horizontal bus)
 6Rated short-time withstand current
Effective value lcw (1 sec)(kA)
30 (Horizontal bus)
 7Rated short-time withstand current
Maximum value lpk (kA)
30 (Horizontal bus)
 8Power frequency withstand voltage for 1 minutes2500 VA
 9Temperature rise: Conforms to IEC 947-1 for
Temperature rise:and the temperature rise does not
Exceed the corresponding standard requirement of
the compinent
Terminals for external insulated conductors:not more than 70k
Handle the surface of the insulation is not greater than 25K
Contactable shell and sheathing,metal surface is not greater than 30k



Part numberDescription
 1Negative convergence copper busbar
 216-way detection unit
 3DC MCB
 4DC positive Convergence output
 5DC negative Convergence output
 6LRS485 communication terminal (output point)
 7Ground output point
 8Lightning protection device
 9Positive convergence copper
 10DC positive fuse hold and fuse (each input in series with a fuse) up to 16 way
 11DC negative fuse hold and fuse (each input in series with a fuse) up to 16 road

 3.Size Figure 1: internal structure of the combiner box

SpecificationWidth(A)mmHeight(B)mmDepth(C)mm
18 way645550205
14/16 way610550205
10/12 way530550205
6/8 way460550205
2/4 way390550205



4.Installation dimension

16 ways combiner box dimension:610mm×500mm×205mm (width×depth×height)

recommended for vertical wall installation
